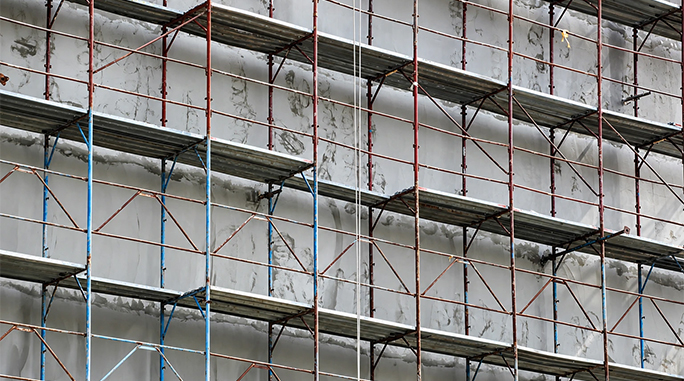

Cuplock scaffolding load capacity is not a single fixed number.
The safe capacity of a Cuplock system depends on its load class, component specifications, bay dimensions, height, bracing, ties, foundation and the loads imposed on each component. Under EN 12811-1, scaffold working areas are classified from Load Class 1 at 0.75 kN/m² to Load Class 6 at 6.00 kN/m², while individual Cuplock standards can have different tested capacities depending on their design and configuration. Cuplock scaffolding systems like ours should therefore always be selected according to the project's calculated loads and the manufacturer's certified technical data.
In this guide, we explain the factors that affect Cuplock load capacity, the difference between safe working and ultimate loads, applicable load classes, how to calculate loads using a practical example, and the key compliance and safety considerations for UAE projects.
What Determines Cuplock Scaffolding Load Capacity?
The load capacity of a Cuplock system depends on more than the strength of its vertical standards. The complete scaffold has to transfer loads safely through the standards, ledgers, transoms, braces, connections, base jacks and supporting ground.
Several factors influence the final capacity.
Standard diameter and wall thickness
The dimensions of the vertical standard affect its resistance to compression and buckling. Cuplock systems are available with different tube specifications. For example, published manufacturer data includes 48.3 mm OD × 3.0 mm standards, while other systems use 48.3 mm OD × 3.2 mm or larger 60 mm OD × 3.2 mm sections.
This means the load rating of one manufacturer's Cuplock standard should not automatically be applied to another manufacturer's component.
Steel grade
Steel grade also affects structural performance. Higher-strength steel can provide greater resistance to the stresses generated by heavy loads, although the final capacity still depends on the complete scaffold configuration.

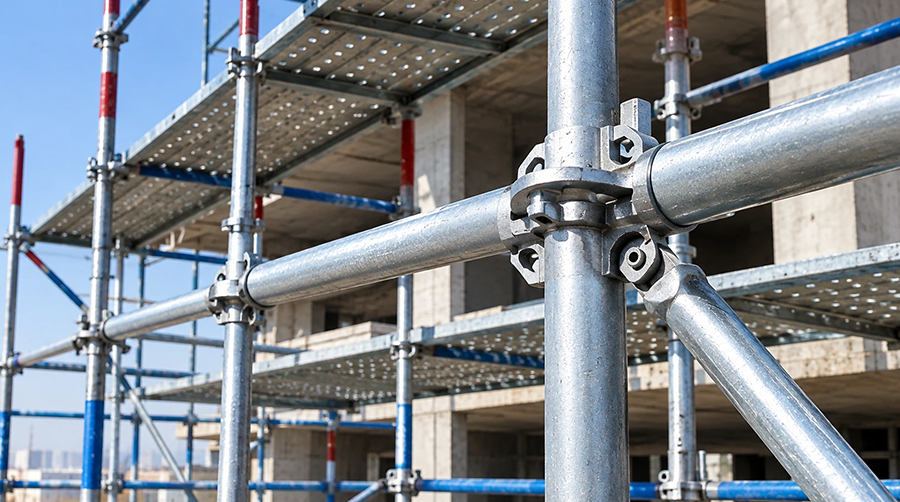

Cup spacing and connections
Cuplock standards commonly use cup connections at 500 mm intervals. These connections allow ledgers and transoms to be locked into the standards, creating the framework needed to transfer vertical and horizontal loads.
Bay dimensions and bracing
A wider or longer bay can change how loads are distributed between standards and ledgers. As scaffold height increases, bracing, ties and restraint become increasingly important for maintaining stability.
This is why Cuplock standard load capacity should never be treated as the capacity of an entire scaffold tower.
Safe Working Load vs. Ultimate Load: What's the Difference?
Two numbers commonly appear in scaffolding test data: ultimate load and safe working load.
The ultimate or failure load is the load at which a component or assembly fails during testing. The safe working load is a lower design or working value derived using the applicable safety factor and design methodology.
For example, one published Cuplock test reports a 3 m standard with a failure load of 153.47 kN. Using a stated 3:1 safety factor, the corresponding safety load is 51.16 kN. The same source reports a 3-tier Cuplock tower failure load of 101.62 kN and a safety load of 33.87 kN.
This illustrates an important point: a test failure load is not the load that should be placed on a scaffold during normal work.
Safety factors also depend on the applicable design standard and component or system being assessed. For example, OSHA's construction scaffold requirements state that each scaffold and scaffold component must support its own weight plus at least four times the maximum intended load applied or transmitted to it. OSHA also requires scaffolds to be designed by a qualified person and loaded according to that design.
Load ratings by standard or test reference
| Component / measure | Published rating | Reference |
|---|---|---|
| EN 12811 Load Class 1 | 0.75 kN/m² (≈75 kg/m²) | EN 12811-1 |
| EN 12811 Load Class 2 | 1.50 kN/m² (≈150 kg/m²) | EN 12811-1 |
| EN 12811 Load Class 3 | 2.00 kN/m² (≈200 kg/m²) | EN 12811-1 |
| EN 12811 Load Class 4 | 3.00 kN/m² (≈300 kg/m²) | EN 12811-1 |
| EN 12811 Load Class 5 | 4.50 kN/m² (≈450 kg/m²) | EN 12811-1 |
| EN 12811 Load Class 6 | 6.00 kN/m² (≈600 kg/m²) | EN 12811-1 |
| 3 m Cuplock standard | 153.47 kN failure load / 51.16 kN safety load | Published manufacturer test data |
| 3-tier Cuplock tower | 101.62 kN failure load / 33.87 kN safety load | Published manufacturer test data |
| Base jack at 400 mm height | 106 kN ultimate / 35.33 kN safety load | Published manufacturer test data |
| 1.5 m horizontal | 11 kN ultimate / 3.67 kN safety load | Published manufacturer test data |
Published figures vary by manufacturer, component dimensions, steel grade, test setup and scaffold configuration. Always confirm the applicable certified data sheet and engineering design before loading a scaffold.
Cuplock Load Capacity by Duty and Usage Class
When discussing scaffolding load capacity in the UAE, it is important to distinguish between the scaffold's working-area load class and the structural capacity of individual components.
EN 12811-1 defines six load classes for working areas:
| Load class | Uniformly distributed load | Approx. kg/m² | Typical application |
|---|---|---|---|
| Class 1 | 0.75 kN/m² | 75 kg/m² | Inspection and very light work |
| Class 2 | 1.50 kN/m² | 150 kg/m² | Light maintenance and finishing |
| Class 3 | 2.00 kN/m² | 200 kg/m² | General facade and construction work |
| Class 4 | 3.00 kN/m² | 300 kg/m² | Heavier work and material storage |
| Class 5 | 4.50 kN/m² | 450 kg/m² | Heavy-duty applications |
| Class 6 | 6.00 kN/m² | 600 kg/m² | Higher-load and specialist applications |
These figures describe loads on the working area, not the maximum weight that can simply be placed on a Cuplock standard. EN 12811-1 also considers concentrated loads and partial-area loads for relevant classes.
This distinction is important because terms such as "light duty," "medium duty" and "heavy duty" are also commonly used in the industry. They should not be treated as interchangeable with the formal EN 12811 load classes.
For heavy industrial applications, the required load class should be established from the actual work activities, equipment and material storage requirements rather than selected from a generic table.
How to Calculate Cuplock Scaffolding Load Capacity
Calculating Cuplock scaffolding load capacity starts with identifying the loads the scaffold will actually experience. A simplified example can show how the process works.
Step 1: Define the scaffold grid
Assume a working bay measuring:
1.8 m × 1.3 m = 2.34 m²
This gives the working area over which the platform load is distributed.
Step 2: Calculate the working load
Suppose the platform is expected to carry:
2 workers at approximately 100 kg each = 200 kg
Tools and equipment = 100 kg
Materials = 300 kg
The total imposed working load is:
200 + 100 + 300 = 600 kg
Converting this approximately to force:
600 kg × 9.81 ÷ 1,000 = 5.89 kN
Step 3: Calculate the area load
Divide the imposed load by the working area:
5.89 kN ÷ 2.34 m² = 2.52 kN/m²
The calculated working load is therefore approximately 2.52 kN/m².
This exceeds the 2.00 kN/m² nominal load for EN 12811 Load Class 3 and would require consideration of the next applicable load class or a project-specific design, depending on the complete arrangement and loading pattern. EN 12811 load classes range from 0.75 to 6.00 kN/m².
Step 4: Account for dead load and other actions
The calculation cannot stop at workers and stored materials.
The design also needs to consider the self-weight of the scaffold and platforms, as well as applicable variable actions such as wind. EN 12811-1 identifies permanent loads, variable loads including service and wind loads, and applicable accidental loads as actions to be considered in scaffold design.
For UAE projects, wind exposure can be particularly important for tall, exposed or sheeted scaffolds. The effect of wind depends on the scaffold's location, height, geometry, ties, sheeting and surrounding conditions.
Step 5: Check the load transferred to each standard
The total platform load is distributed through the scaffold structure. It does not simply divide equally between every standard.
The engineer must assess how the load is transferred through the platform, transoms, ledgers, connections and standards and then check the resulting forces against the certified capacities of the individual components and the complete scaffold arrangement.
This is why how we specify and supply load-rated Cuplock systems for UAE sites should be based on the project's actual loading requirements rather than a generic Cuplock load capacity figure.
Cuplock Scaffolding Compliance in the UAE
For projects using Cuplock scaffolding in Dubai or elsewhere in the UAE, compliance involves more than selecting a product with a published load rating.
Dubai's Building Code establishes minimum requirements for building design, including health and safety considerations, while individual projects may also be subject to authority requirements, contractor specifications and site-specific inspection procedures.
The applicable requirements should therefore be confirmed for the specific project and location.
Depending on the project, documentation may include:
- Manufacturer technical data and component specifications
- Relevant conformity or certification documents
- Scaffold design calculations where required
- Load-rating or test documentation
- Inspection records
- Erection and dismantling procedures
- Details of ties, bracing and foundations
- Project-specific approvals or authority requirements
International standards may also form part of a project's technical specification. EN 12811-1 provides requirements and load classifications for temporary works equipment and working scaffolds, while OSHA requirements are used as a reference on some projects. However, these should not be treated as interchangeable legal requirements. The applicable authority, contract specification and approved design should always govern the project.
For UAE sites, environmental conditions should also be considered. Wind exposure, high temperatures, humidity, dust and corrosion can affect scaffold performance and maintenance requirements.
Our Cuplock scaffolding service for UAE industrial and commercial sites can be specified around the project's access, loading and configuration requirements, with the relevant technical documentation established for the application.
Common Cuplock Load Capacity Mistakes on Site
Even a high-capacity Cuplock system can become unsafe when it is erected or loaded outside its designed configuration.
1. Increasing bay spacing without redesign
Changing the original bay dimensions can alter the loads carried by ledgers, transoms and standards. A scaffold should not be modified beyond its approved design without appropriate engineering review.
2. Removing or reducing bracing
Bracing contributes to the stability of the scaffold system. Removing braces to create additional working space can change its structural behaviour.
3. Ignoring wind loads
Wind becomes increasingly important for tall, exposed and sheeted scaffolds. This is particularly relevant to exposed sites in the UAE.
4. Concentrating heavy materials in one location
A platform's area load rating does not mean that any amount of material can be placed at one point. Concentrated loads and their location need to be considered in the design.
5. Mixing incompatible components
Using standards, ledgers, cups, jacks or other components from different systems without confirming compatibility can affect connections and the structural performance of the scaffold.
6. Treating the component rating as the system rating
A standard may have a high tested axial capacity while the complete scaffold is limited by another component, the foundation, connections, buckling, bracing or the overall configuration.
FAQs About Cuplock Scaffolding Load Capacity
1. What is the load capacity of a Cuplock standard?
There is no single universal capacity for every Cuplock standard. Published manufacturer data can vary considerably according to tube dimensions, steel grade, length, restraint and test configuration. One published test reports a 3 m standard with a 153.47 kN failure load and 51.16 kN safety load using a 3:1 factor.
2. How much weight can Cuplock scaffolding hold?
It depends on the scaffold's design and load class. Under EN 12811-1, working-area load classes range from 0.75 kN/m² to 6.00 kN/m², or approximately 75 to 600 kg/m². These are working-area classifications and should not be interpreted as the capacity of an individual standard.
3. What is the safe working load of Cuplock scaffolding?
The safe working load depends on the component or complete scaffold design and the applicable safety methodology. It should be established from certified manufacturer data and engineering calculations rather than assumed from a generic Cuplock rating.
4. What safety factor is used for Cuplock scaffolding?
The applicable factor depends on the standard, component and design method being used. For example, OSHA requires scaffold components to support their own weight plus at least four times the maximum intended load applied or transmitted to them. Published Cuplock manufacturer test data may use a 3:1 factor.
5. Is Cuplock scaffolding suitable for heavy industrial loads?
Yes, Cuplock systems can be designed for demanding construction and industrial applications, but suitability depends on the required load, scaffold geometry, component specifications, bracing, ties, foundation and engineering design. Higher-load applications should be specifically designed rather than selected using a generic capacity figure.
6. What UAE standards apply to scaffolding load capacity?
The applicable requirements depend on the project, authority and contract specification. EN 12811-1 may be referenced for scaffold performance and working-area load classes, while Dubai projects are also subject to the applicable Dubai Building Code and project-specific requirements.
7. How is Cuplock load capacity calculated on site?
The calculation starts by identifying the scaffold configuration and all expected loads, including workers, tools, materials and scaffold self-weight. The engineer then assesses how these loads are distributed through the scaffold and checks the standards, ledgers, transoms, connections, bracing, ties, base jacks and supporting ground against their applicable design capacities.
Choose Cuplock Scaffolding Based on the Load, Not Just the Rating
Cuplock scaffolding load capacity is a system-design question, not simply a number printed against a standard. Load class, component specifications, bay dimensions, scaffold height, bracing, ties, foundation conditions and environmental loads all contribute to the final design.
For projects where heavy materials, equipment or industrial work are involved, the right approach is to establish the required loading first and then select a Cuplock configuration that meets the calculated requirements.
